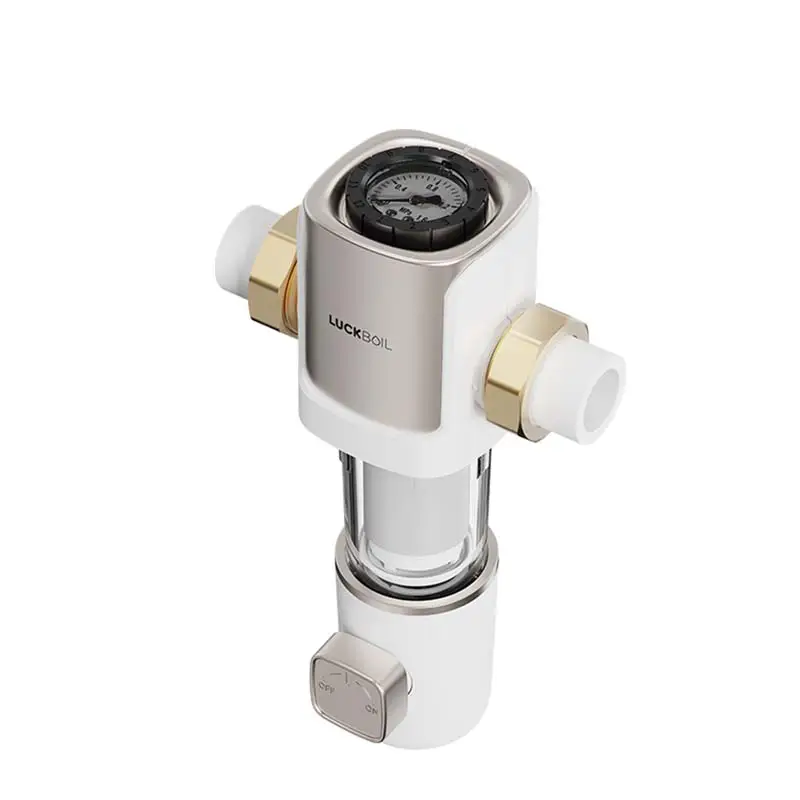

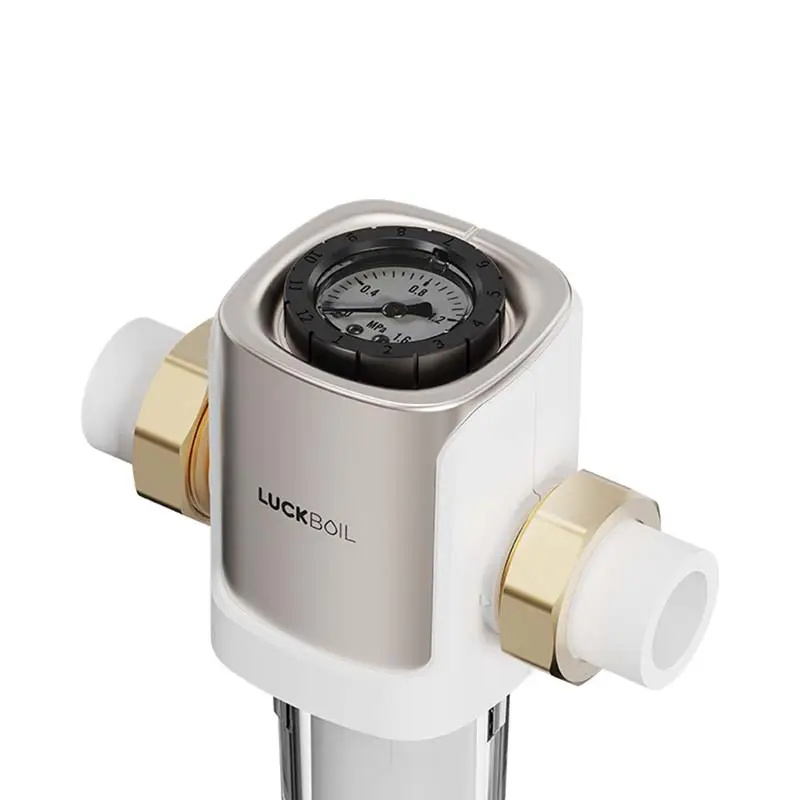

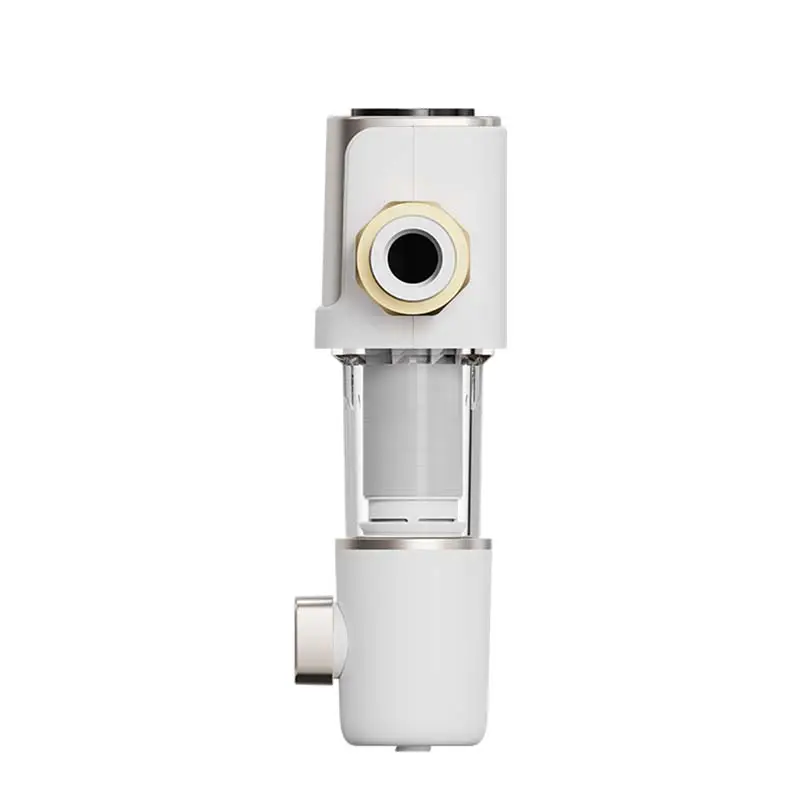

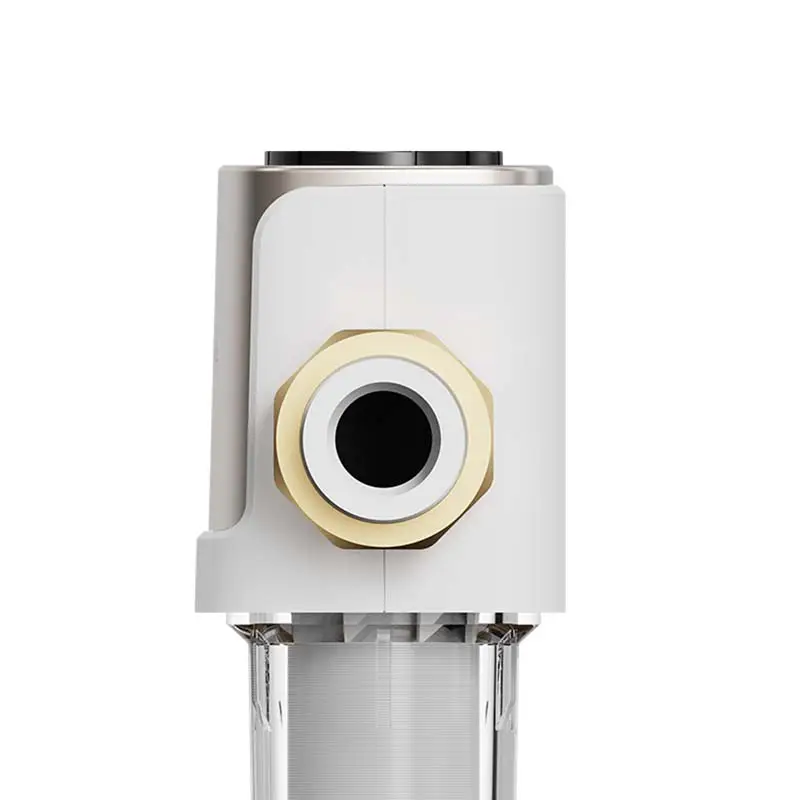

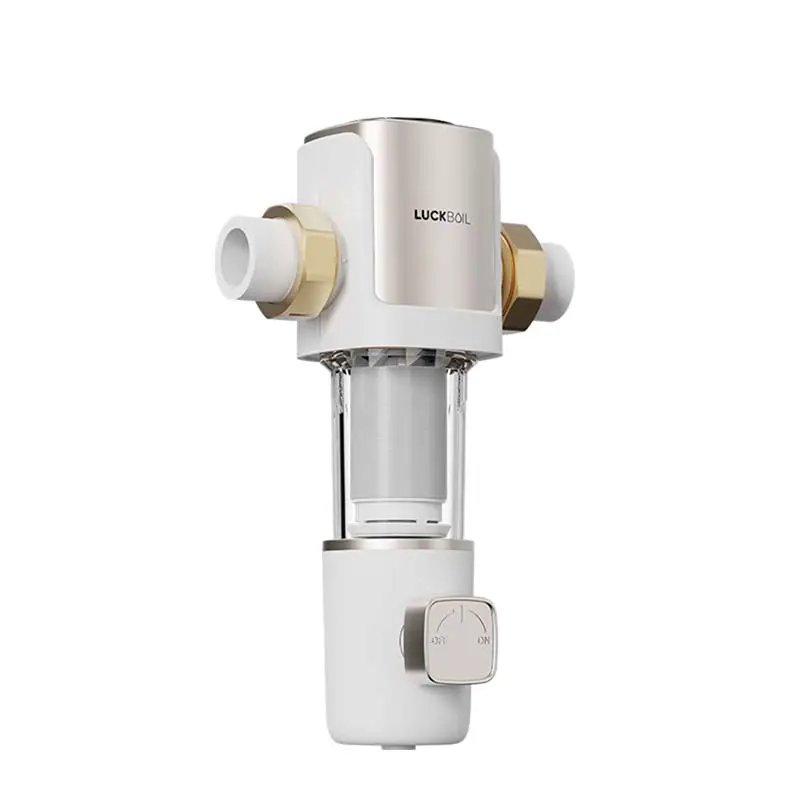

前置过滤器净水器使用手册 LB-MCQZ01

★终身使用

★316精密不锈钢过滤网

★净化水处理能力:6T/H

★额定净水容量:7000T

★过滤精度:40μm

★水压:0.1-1MPa

★工作温度:5-38°C

★进水:市政自来水

★连接尺寸:dn20mm/dn25mm

★人工污水排放和冲洗

★无需更换滤芯

★非晶态共聚酯过滤瓶,不含双酚A

★爆破压力:78 Bar

给我们留言
视频
规格

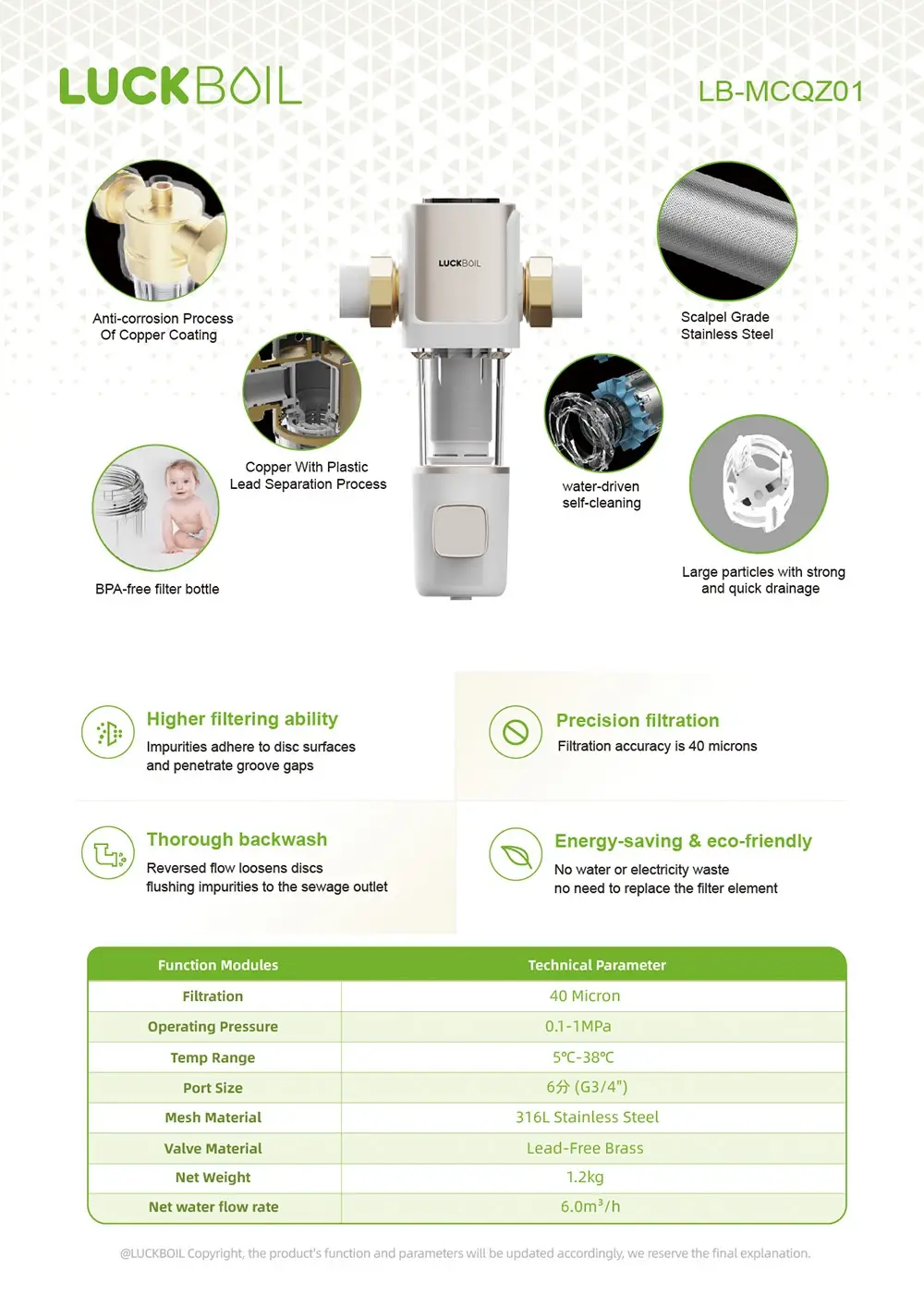

功能模块 技术参数
过滤 40μm
工作压力 0.1-1MPa
温度范围 5℃-38℃
端口尺寸 6分(G3/4″)
网状材料 316L不锈钢
阀门材料 无铅黄铜
净重 1.2kg
净水流量 6.0m3/h
